环境

系统平台：银河麒麟 （鲲鹏）
版本：4.5.8

症状

数据库运维实施工具版本： hguard_v2.0.1_20251217

监控页面无复制槽相关数据展示

highgo_exporter报错日志示例

time=2026-02-02T09:45:21.455Z level=ERROR source=postgres_exporter.go:685 msg="error scraping dsn" err="queryNamespaceMappings returned 2 errors" dsn="postgresql://sysdba:PASSWORD_REMOVED@10.247.22.16:5866/highgo?sslmode=disable"

数据库报错示例

2026-02-02 17:45:51.431 CST,"sysdba","highgo",2659519,"10.247.22.16:48368",69807024.2894bf,77,"SELECT",2026-02-02 17:36:36 CST,20/119294,0,ERROR,XX000,"unexpected non-SELECT command in SubLink",,,,,,"select * from jsonb_to_recordset((select case when pg_is_in_recovery()='t' then '[]' else (select json_agg(row_to_json(result)) from (select slot_name,plugin,slot_type,database,active,restart_lsn,pg_wal_lsn_diff(pg_current_wal_lsn(), restart_lsn) as lag_size,case when wal.modification is not null then round(extract(epoch from((select modification from pg_ls_waldir() where name = pg_walfile_name(pg_current_wal_lsn()))- wal.modification::timestamp))) else null end as lag_time from pg_replication_slots left join pg_ls_waldir() wal on pg_walfile_name(restart_lsn) = wal.name) result) end)::jsonb) as rec(slot_name varchar,plugin varchar,slot_type text,database varchar,active bool,restart_lsn pg_lsn,lag_size numeric,lag_time numeric)",,,""

问题原因

因数据库配置compatible_db兼容参数导致查询失败

示例

# psql highgo sysdba
highgo=# show compatible_db ;
 compatible_db
---------------
 mysql
(1 row)

解决方案

1. 备份旧版queries.yaml文件

cd /usr/local/exporter
mv queries.yaml queries_old.yaml

2. 上传新版queries.yaml文件
   见附件：queries.zip

# cd /usr/local/exporter
# ll queries.yaml
-rw-r--r-- 1 root root 11135 Feb  4 08:58 queries.yaml
# md5sum queries.yaml
458a23ae6d2fbb82b1e5dd6a10879f40  queries.yaml

上传queries.zip后，校验md5结果应为458a23ae6d2fbb82b1e5dd6a10879f40

3. 重启highgo_exporter进程

pkill highgo_exporter

cd /usr/local/exporter
export DATA_SOURCE_NAME=postgresql://用户名:用户密码@localhost:端口号/数据库名?sslmode=disable
./highgo_exporter --web.listen-address=":9187" --collector.postmaster --extend.query-path="queries.yaml 的绝对路径" --no-collector.roles --no-collector.replication --log.level="error" &> highgo_exporter.log &

执行 tail -f /usr/local/exporter/highgo_exporter.log查看最新输出，没有level=ERROR的日志输出即为正常。

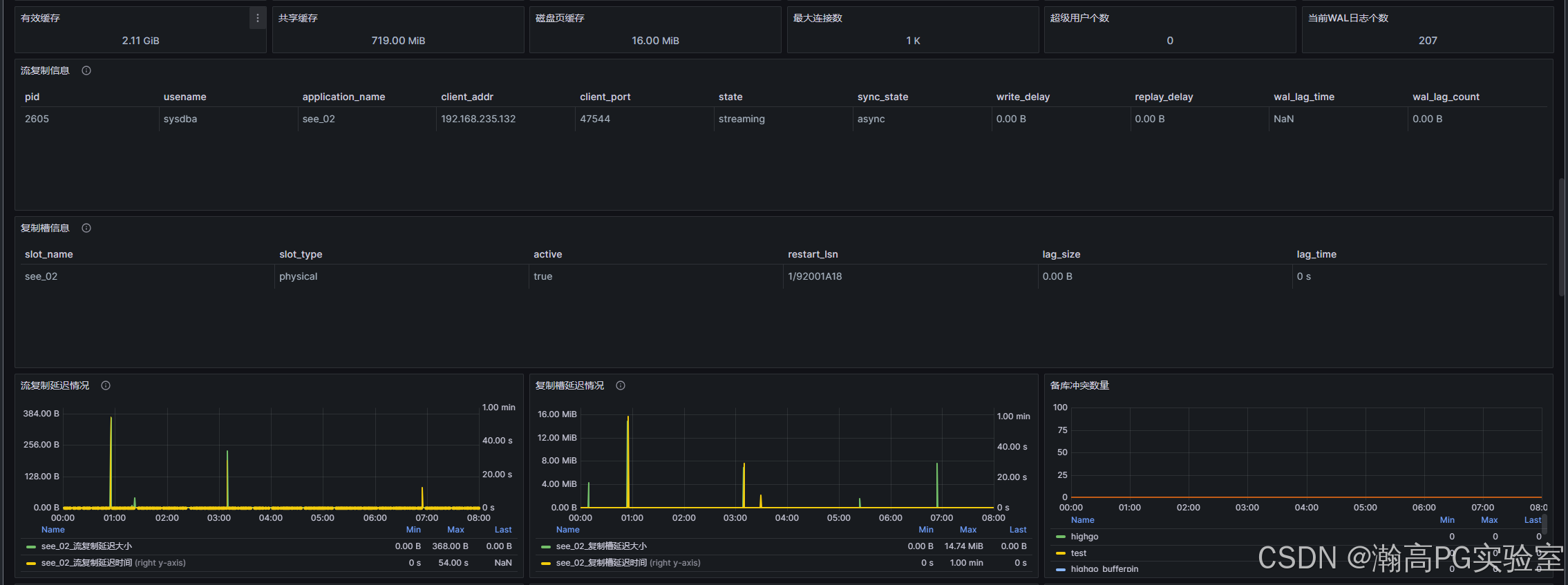

正常监控页面示例
