1 模型简介

SSD，全称Single Shot MultiBox Detector，是作者Wei Liu在ECCV 2016上发表的论文。对于输入尺寸300x300的网络，使用Nvidia Titan X在VOC 2007测试集上达到74.3%mAP以及59FPS，对于512x512的网络，达到了76.9%mAP。超越当时最强的Faster RCNN(73.2%mAP)。

SSD是一种目标检测算法，目标检测主流算法分成可以两个类型：

（1）. two-stage方法

（2）. one-stage方法

SSD是单阶段的目标检测算法，通过卷积神经网络进行特征提取，取不同的特征层进行检测输出，所以SSD是一种多尺度的检测方法。在需要检测的特征层，直接使用一个3x3卷积，进行通道的变换。SSD采用了anchor的策略，预设不同长宽比例的anchor，每一个输出特征层基于anchor预测多个检测框（4或者6）。采用了多尺度检测方法，浅层用于检测小目标，深层用于检测大目标。

1.1 模型结构

SSD采用VGG16作为基础模型，然后在VGG16的基础上新增了卷积层来获得更多的特征图以用于检测。SSD的网络结构如图所示。上面是SSD模型，下面是Yolo模型，可以明显看到SSD利用了多尺度的特征图做检测。

SSD对比了YOLO系列目标检测方法，不同的是SSD通过卷积得到最后的边界框，而YOLO对最后的输出采用全连接的形式得到一维向量，对向量进行拆解得到最终的检测框。

1.2 模型特点

a)多尺度检测

在SSD的网络结构图中我们可以看到，SSD使用了多个特征层，一共6种不同的特征图尺寸。大尺度特征图（较靠前的特征图）可以用来检测小物体，而小尺度特征图（较靠后的特征图）用来检测大物体。多尺度检测的方式，可以使得检测更加充分（SSD属于密集检测），更能检测出小目标。

b)采用卷积进行检测

与Yolo最后采用全连接层不同，SSD直接采用卷积对不同的特征图来进行提取检测结果。

c)预设anchor

在yolov1中，直接由网络预测目标的尺寸，这种方式使得预测框的长宽比和尺寸没有限制，难以训练。在SSD中，采用预设边界框，我们习惯称它为anchor（在SSD论文中叫default bounding boxes），预测框的尺寸在anchor的指导下进行微调。

2.案例实现

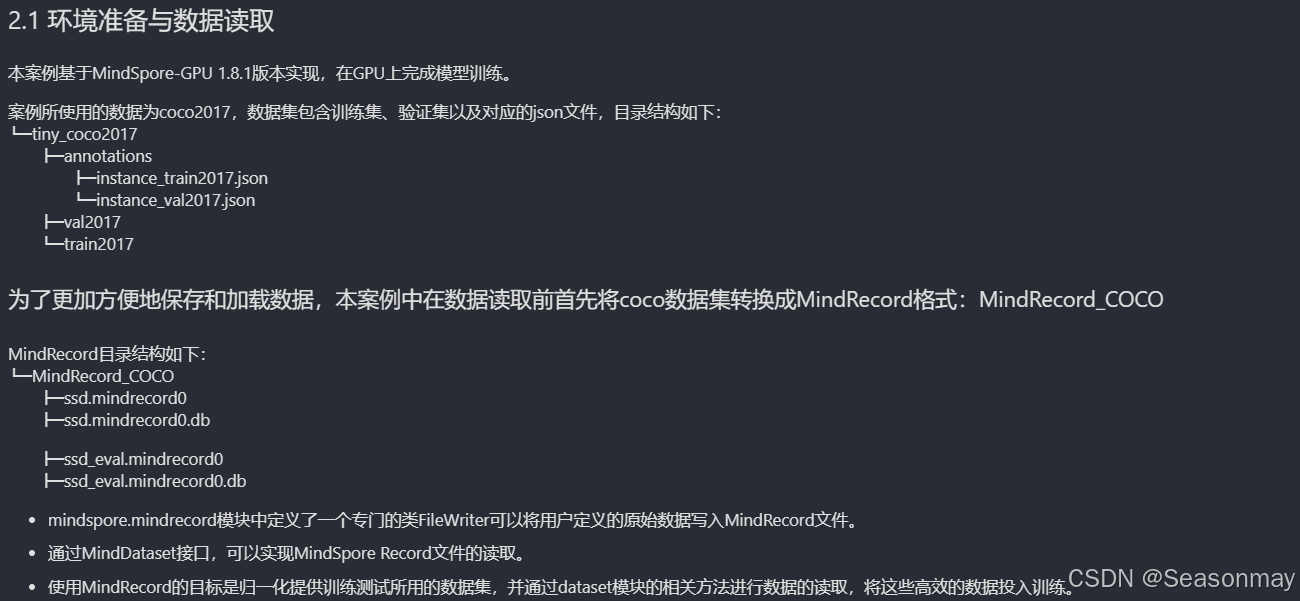

其中数据集组织如下

数据集处理

数据预处理

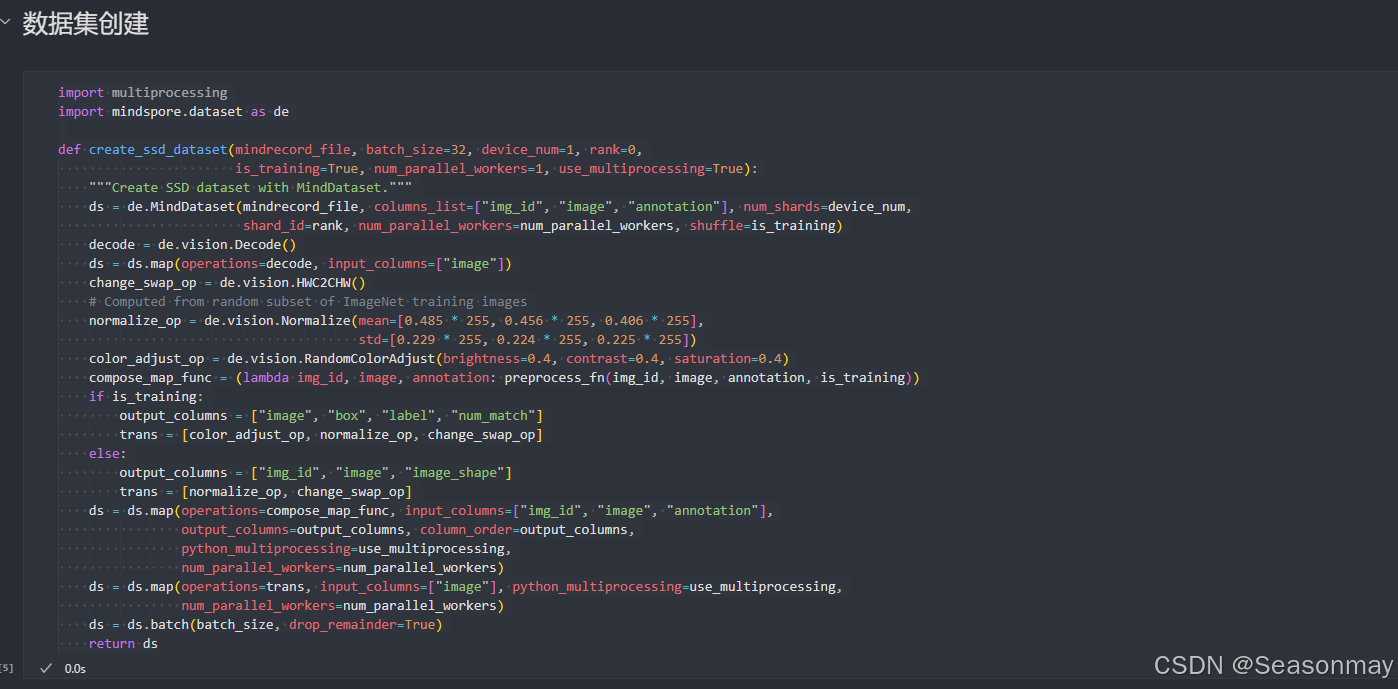

数据集创建

构建模型

代码：

import mindspore as ms
import mindspore.nn as nn
from src.vgg16 import vgg16
import mindspore.ops as ops
import ml_collections
from src.config import get_config

config = get_config()

def _make_divisible(v, divisor, min_value=None):
    """ensures that all layers have a channel number that is divisible by 8."""
    if min_value is None:
        min_value = divisor
    new_v = max(min_value, int(v + divisor / 2) // divisor * divisor)
    # Make sure that round down does not go down by more than 10%.
    if new_v < 0.9 * v:
        new_v += divisor
    return new_v


def _conv2d(in_channel, out_channel, kernel_size=3, stride=1, pad_mod='same'):
    return nn.Conv2d(in_channel, out_channel, kernel_size=kernel_size, stride=stride,
                     padding=0, pad_mode=pad_mod, has_bias=True)


def _bn(channel):
    return nn.BatchNorm2d(channel, eps=1e-3, momentum=0.97,
                          gamma_init=1, beta_init=0, moving_mean_init=0, moving_var_init=1)


def _last_conv2d(in_channel, out_channel, kernel_size=3, stride=1, pad_mod='same', pad=0):
    in_channels = in_channel
    out_channels = in_channel
    depthwise_conv = nn.Conv2d(in_channels, out_channels, kernel_size, stride, pad_mode='same',
                               padding=pad, group=in_channels)
    conv = _conv2d(in_channel, out_channel, kernel_size=1)
    return nn.SequentialCell([depthwise_conv, _bn(in_channel), nn.ReLU6(), conv])


class FlattenConcat(nn.Cell):
    def __init__(self, config):
        super(FlattenConcat, self).__init__()
        self.num_ssd_boxes = config.num_ssd_boxes
        self.concat = ops.Concat(axis=1)
        self.transpose = ops.Transpose()

    def construct(self, inputs):
        output = ()
        batch_size = ops.shape(inputs[0])[0]
        for x in inputs:
            x = self.transpose(x, (0, 2, 3, 1))
            output += (ops.reshape(x, (batch_size, -1)),)
        res = self.concat(output)
        return ops.reshape(res, (batch_size, self.num_ssd_boxes, -1))


class GridAnchorGenerator:
    """
    Anchor Generator
    """
    def __init__(self, image_shape, scale, scales_per_octave, aspect_ratios):
        super(GridAnchorGenerator, self).__init__()
        self.scale = scale
        self.scales_per_octave = scales_per_octave
        self.aspect_ratios = aspect_ratios
        self.image_shape = image_shape


    def generate(self, step):
        scales = np.array([2**(float(scale) / self.scales_per_octave)
                           for scale in range(self.scales_per_octave)]).astype(np.float32)
        aspects = np.array(list(self.aspect_ratios)).astype(np.float32)

        scales_grid, aspect_ratios_grid = np.meshgrid(scales, aspects)
        scales_grid = scales_grid.reshape([-1])
        aspect_ratios_grid = aspect_ratios_grid.reshape([-1])

        feature_size = [self.image_shape[0] / step, self.image_shape[1] / step]
        grid_height, grid_width = feature_size

        base_size = np.array([self.scale * step, self.scale * step]).astype(np.float32)
        anchor_offset = step / 2.0

        ratio_sqrt = np.sqrt(aspect_ratios_grid)
        heights = scales_grid / ratio_sqrt * base_size[0]
        widths = scales_grid * ratio_sqrt * base_size[1]

        y_centers = np.arange(grid_height).astype(np.float32)
        y_centers = y_centers * step + anchor_offset
        x_centers = np.arange(grid_width).astype(np.float32)
        x_centers = x_centers * step + anchor_offset
        x_centers, y_centers = np.meshgrid(x_centers, y_centers)

        x_centers_shape = x_centers.shape
        y_centers_shape = y_centers.shape

        widths_grid, x_centers_grid = np.meshgrid(widths, x_centers.reshape([-1]))
        heights_grid, y_centers_grid = np.meshgrid(heights, y_centers.reshape([-1]))

        x_centers_grid = x_centers_grid.reshape(*x_centers_shape, -1)
        y_centers_grid = y_centers_grid.reshape(*y_centers_shape, -1)
        widths_grid = widths_grid.reshape(-1, *x_centers_shape)
        heights_grid = heights_grid.reshape(-1, *y_centers_shape)


        bbox_centers = np.stack([y_centers_grid, x_centers_grid], axis=3)
        bbox_sizes = np.stack([heights_grid, widths_grid], axis=3)
        bbox_centers = bbox_centers.reshape([-1, 2])
        bbox_sizes = bbox_sizes.reshape([-1, 2])
        bbox_corners = np.concatenate([bbox_centers - 0.5 * bbox_sizes, bbox_centers + 0.5 * bbox_sizes], axis=1)
        self.bbox_corners = bbox_corners / np.array([*self.image_shape, *self.image_shape]).astype(np.float32)
        self.bbox_centers = np.concatenate([bbox_centers, bbox_sizes], axis=1)
        self.bbox_centers = self.bbox_centers / np.array([*self.image_shape, *self.image_shape]).astype(np.float32)

        print(self.bbox_centers.shape)
        return self.bbox_centers, self.bbox_corners

    def generate_multi_levels(self, steps):
        bbox_centers_list = []
        bbox_corners_list = []
        for step in steps:
            bbox_centers, bbox_corners = self.generate(step)
            bbox_centers_list.append(bbox_centers)
            bbox_corners_list.append(bbox_corners)

        self.bbox_centers = np.concatenate(bbox_centers_list, axis=0)
        self.bbox_corners = np.concatenate(bbox_corners_list, axis=0)
        return self.bbox_centers, self.bbox_corners



class MultiBox(nn.Cell):
    """
    Multibox conv layers. Each multibox layer contains class conf scores and localization predictions.
    """

    def __init__(self, config):
        super(MultiBox, self).__init__()
        num_classes = 81
        out_channels = [512, 1024, 512, 256, 256, 256]
        num_default = config.num_default

        loc_layers = []
        cls_layers = []
        for k, out_channel in enumerate(out_channels):
            loc_layers += [_last_conv2d(out_channel, 4 * num_default[k],
                                        kernel_size=3, stride=1, pad_mod='same', pad=0)]
            cls_layers += [_last_conv2d(out_channel, num_classes * num_default[k],
                                        kernel_size=3, stride=1, pad_mod='same', pad=0)]

        self.multi_loc_layers = nn.layer.CellList(loc_layers)
        self.multi_cls_layers = nn.layer.CellList(cls_layers)
        self.flatten_concat = FlattenConcat(config)

    def construct(self, inputs):
        loc_outputs = ()
        cls_outputs = ()
        for i in range(len(self.multi_loc_layers)):
            loc_outputs += (self.multi_loc_layers[i](inputs[i]),)
            cls_outputs += (self.multi_cls_layers[i](inputs[i]),)
        return self.flatten_concat(loc_outputs), self.flatten_concat(cls_outputs)


class SSD300VGG16(nn.Cell):
    def __init__(self, config):
        super(SSD300VGG16, self).__init__()

        # VGG16 backbone: block1~5
        self.backbone = vgg16()

        # SSD blocks: block6~7
        self.b6_1 = nn.Conv2d(in_channels=512, out_channels=1024, kernel_size=3, padding=6, dilation=6, pad_mode='pad')
        self.b6_2 = nn.Dropout(0.5)

        self.b7_1 = nn.Conv2d(in_channels=1024, out_channels=1024, kernel_size=1)
        self.b7_2 = nn.Dropout(0.5)

        # Extra Feature Layers: block8~11
        self.b8_1 = nn.Conv2d(in_channels=1024, out_channels=256, kernel_size=1, padding=1, pad_mode='pad')
        self.b8_2 = nn.Conv2d(in_channels=256, out_channels=512, kernel_size=3, stride=2, pad_mode='valid')

        self.b9_1 = nn.Conv2d(in_channels=512, out_channels=128, kernel_size=1, padding=1, pad_mode='pad')
        self.b9_2 = nn.Conv2d(in_channels=128, out_channels=256, kernel_size=3, stride=2, pad_mode='valid')

        self.b10_1 = nn.Conv2d(in_channels=256, out_channels=128, kernel_size=1)
        self.b10_2 = nn.Conv2d(in_channels=128, out_channels=256, kernel_size=3, pad_mode='valid')

        self.b11_1 = nn.Conv2d(in_channels=256, out_channels=128, kernel_size=1)
        self.b11_2 = nn.Conv2d(in_channels=128, out_channels=256, kernel_size=3, pad_mode='valid')

        # boxes
        self.multi_box = MultiBox(config)
        if not self.training:
            self.activation = ops.Sigmoid()

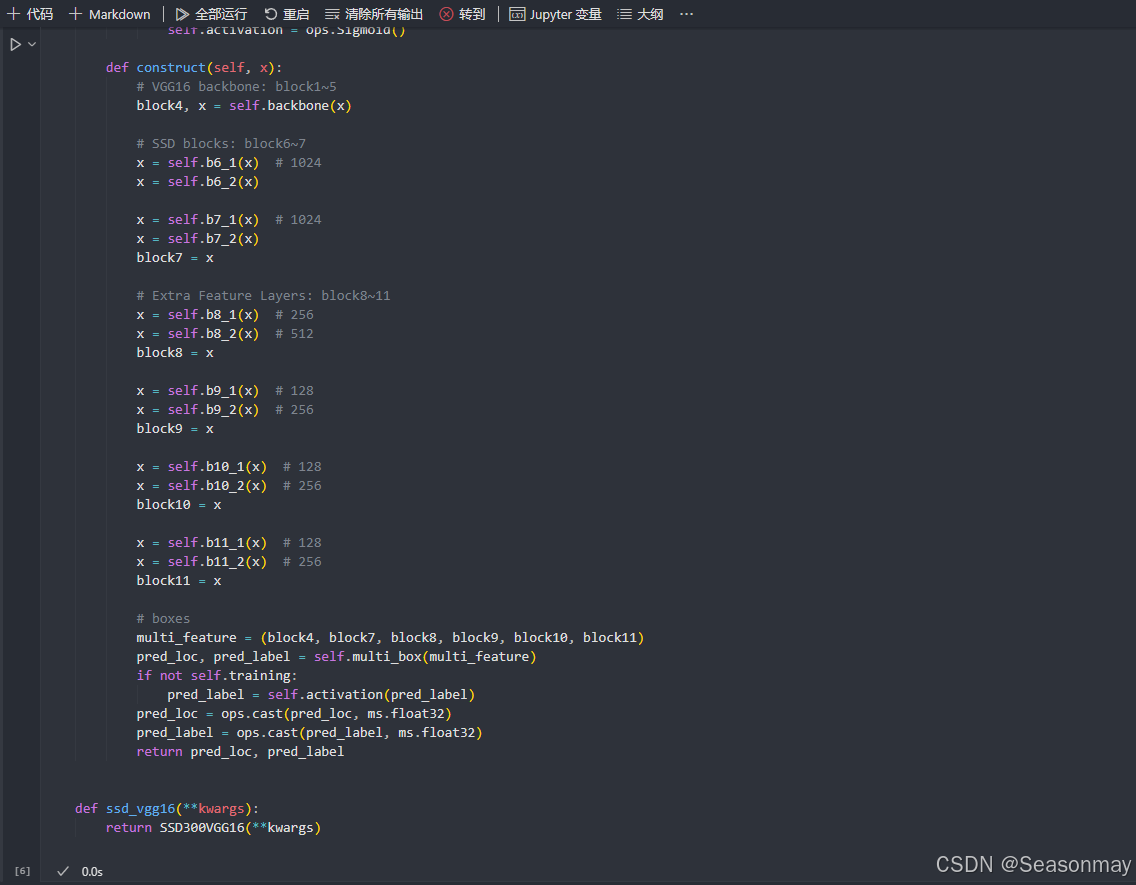

    def construct(self, x):
        # VGG16 backbone: block1~5
        block4, x = self.backbone(x)

        # SSD blocks: block6~7
        x = self.b6_1(x)  # 1024
        x = self.b6_2(x)

        x = self.b7_1(x)  # 1024
        x = self.b7_2(x)
        block7 = x

        # Extra Feature Layers: block8~11
        x = self.b8_1(x)  # 256
        x = self.b8_2(x)  # 512
        block8 = x

        x = self.b9_1(x)  # 128
        x = self.b9_2(x)  # 256
        block9 = x

        x = self.b10_1(x)  # 128
        x = self.b10_2(x)  # 256
        block10 = x

        x = self.b11_1(x)  # 128
        x = self.b11_2(x)  # 256
        block11 = x

        # boxes
        multi_feature = (block4, block7, block8, block9, block10, block11)
        pred_loc, pred_label = self.multi_box(multi_feature)
        if not self.training:
            pred_label = self.activation(pred_label)
        pred_loc = ops.cast(pred_loc, ms.float32)
        pred_label = ops.cast(pred_label, ms.float32)
        return pred_loc, pred_label


def ssd_vgg16(**kwargs):
    return SSD300VGG16(**kwargs)

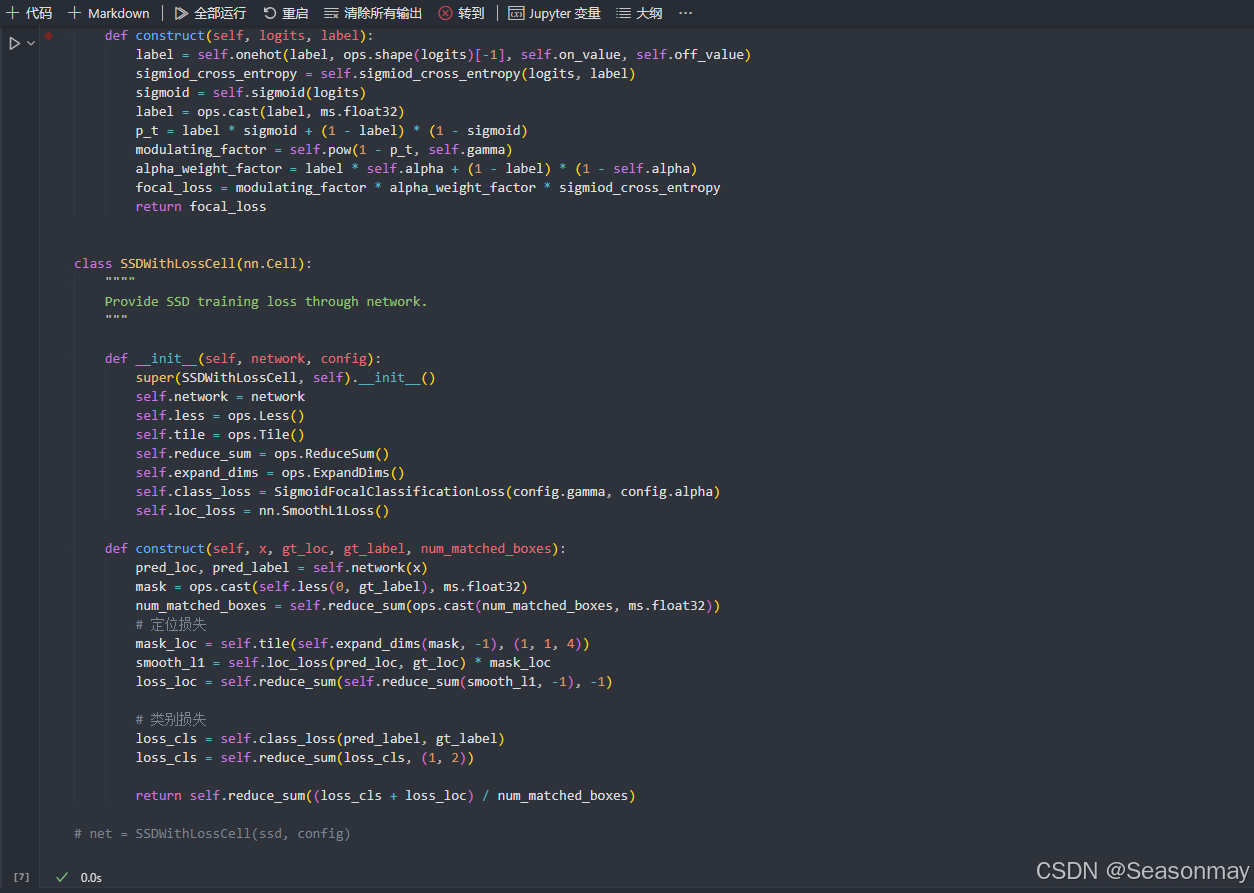

定义损失函数

代码：

import mindspore.nn as nn
import mindspore.ops as ops
from mindspore import Tensor

grad_scale = ops.MultitypeFuncGraph("grad_scale")

class SigmoidFocalClassificationLoss(nn.Cell):
    """"
    Sigmoid focal-loss for classification.
    Args:
        gamma (float): Hyper-parameter to balance the easy and hard examples. Default: 2.0
        alpha (float): Hyper-parameter to balance the positive and negative example. Default: 0.25
    """

    def __init__(self, gamma=2.0, alpha=0.25):
        super(SigmoidFocalClassificationLoss, self).__init__()
        self.sigmiod_cross_entropy = ops.SigmoidCrossEntropyWithLogits()
        self.sigmoid = ops.Sigmoid()
        self.pow = ops.Pow()
        self.onehot = ops.OneHot()
        self.on_value = Tensor(1.0, ms.float32)
        self.off_value = Tensor(0.0, ms.float32)
        self.gamma = gamma
        self.alpha = alpha

    def construct(self, logits, label):
        label = self.onehot(label, ops.shape(logits)[-1], self.on_value, self.off_value)
        sigmiod_cross_entropy = self.sigmiod_cross_entropy(logits, label)
        sigmoid = self.sigmoid(logits)
        label = ops.cast(label, ms.float32)
        p_t = label * sigmoid + (1 - label) * (1 - sigmoid)
        modulating_factor = self.pow(1 - p_t, self.gamma)
        alpha_weight_factor = label * self.alpha + (1 - label) * (1 - self.alpha)
        focal_loss = modulating_factor * alpha_weight_factor * sigmiod_cross_entropy
        return focal_loss


class SSDWithLossCell(nn.Cell):
    """"
    Provide SSD training loss through network.
    """

    def __init__(self, network, config):
        super(SSDWithLossCell, self).__init__()
        self.network = network
        self.less = ops.Less()
        self.tile = ops.Tile()
        self.reduce_sum = ops.ReduceSum()
        self.expand_dims = ops.ExpandDims()
        self.class_loss = SigmoidFocalClassificationLoss(config.gamma, config.alpha)
        self.loc_loss = nn.SmoothL1Loss()

    def construct(self, x, gt_loc, gt_label, num_matched_boxes):
        pred_loc, pred_label = self.network(x)
        mask = ops.cast(self.less(0, gt_label), ms.float32)
        num_matched_boxes = self.reduce_sum(ops.cast(num_matched_boxes, ms.float32))
        # 定位损失
        mask_loc = self.tile(self.expand_dims(mask, -1), (1, 1, 4))
        smooth_l1 = self.loc_loss(pred_loc, gt_loc) * mask_loc
        loss_loc = self.reduce_sum(self.reduce_sum(smooth_l1, -1), -1)

        # 类别损失
        loss_cls = self.class_loss(pred_label, gt_label)
        loss_cls = self.reduce_sum(loss_cls, (1, 2))

        return self.reduce_sum((loss_cls + loss_loc) / num_matched_boxes)

# net = SSDWithLossCell(ssd, config)

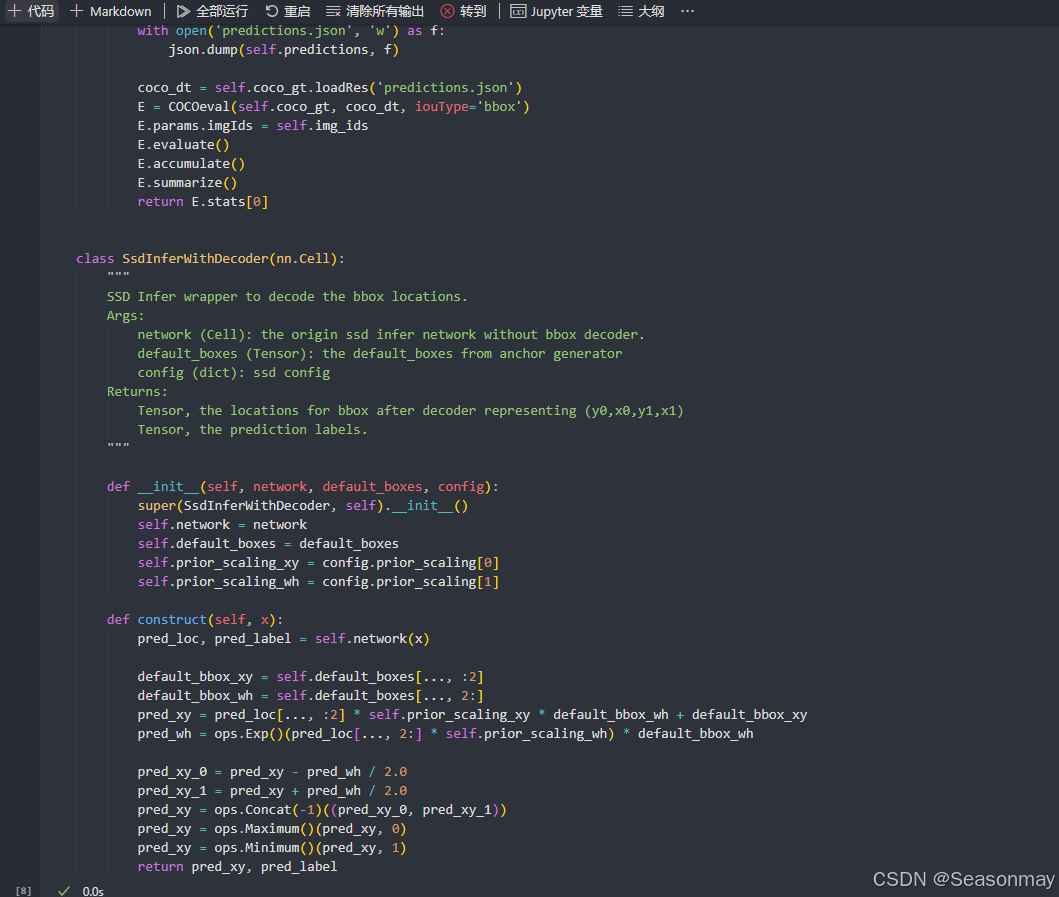

非极大值抑制设置

训练代码：

import os
import math
import itertools as it
from mindspore.train import Model
from src.config import get_config
import mindspore as ms
from mindspore.train.callback import CheckpointConfig, ModelCheckpoint, LossMonitor, TimeMonitor
from src.init_params import init_net_param
from src.lr_schedule import get_lr
from mindspore.common import set_seed


class TrainingWrapper(nn.Cell):

    def __init__(self, network, optimizer, sens=1.0):
        super(TrainingWrapper, self).__init__(auto_prefix=False)
        self.network = network
        self.network.set_grad()
        self.weights = ms.ParameterTuple(network.trainable_params())
        self.optimizer = optimizer
        self.grad = ops.GradOperation(get_by_list=True, sens_param=True)
        self.sens = sens
        self.hyper_map = ops.HyperMap()

    def construct(self, *args):
        weights = self.weights
        loss = self.network(*args)
        sens = ops.Fill()(ops.DType()(loss), ops.Shape()(loss), self.sens)
        grads = self.grad(self.network, weights)(*args, sens)
        self.optimizer(grads)
        return loss

    def generate_multi_levels(self, steps):
        bbox_centers_list = []
        bbox_corners_list = []
        for step in steps:
            bbox_centers, bbox_corners = self.generate(step)
            bbox_centers_list.append(bbox_centers)
            bbox_corners_list.append(bbox_corners)

        self.bbox_centers = np.concatenate(bbox_centers_list, axis=0)
        self.bbox_corners = np.concatenate(bbox_corners_list, axis=0)
        return self.bbox_centers, self.bbox_corners

class GeneratDefaultBoxes():
    """
    Generate Default boxes for SSD, follows the order of (W, H, archor_sizes).
    `self.default_boxes` has a shape of [archor_sizes, H, W, 4], the last dimension is [y, x, h, w].
    `self.default_boxes_tlbr` has a shape as `self.default_boxes`, the last dimension is [y1, x1, y2, x2].
    """
    def __init__(self):
        # print(config)
        fk = config.img_shape[0] / np.array(config.steps)
        scale_rate = (config.max_scale - config.min_scale) / (len(config.num_default) - 1)
        scales = [config.min_scale + scale_rate * i for i in range(len(config.num_default))] + [1.0]
        self.default_boxes = []
        for idex, feature_size in enumerate(config.feature_size):
            sk1 = scales[idex]
            sk2 = scales[idex + 1]
            sk3 = math.sqrt(sk1 * sk2)
            if idex == 0 and not config.aspect_ratios[idex]:
                w, h = sk1 * math.sqrt(2), sk1 / math.sqrt(2)
                all_sizes = [(0.1, 0.1), (w, h), (h, w)]
            else:
                all_sizes = [(sk1, sk1)]
                for aspect_ratio in config.aspect_ratios[idex]:
                    w, h = sk1 * math.sqrt(aspect_ratio), sk1 / math.sqrt(aspect_ratio)
                    all_sizes.append((w, h))
                    all_sizes.append((h, w))
                all_sizes.append((sk3, sk3))

            assert len(all_sizes) == config.num_default[idex]

            for i, j in it.product(range(feature_size), repeat=2):
                for w, h in all_sizes:
                    cx, cy = (j + 0.5) / fk[idex], (i + 0.5) / fk[idex]
                    self.default_boxes.append([cy, cx, h, w])

        def to_tlbr(cy, cx, h, w):
            return cy - h / 2, cx - w / 2, cy + h / 2, cx + w / 2

        # For IoU calculation
        self.default_boxes_tlbr = np.array(tuple(to_tlbr(*i) for i in self.default_boxes), dtype='float32')
        self.default_boxes = np.array(self.default_boxes, dtype='float32')

if hasattr(config, 'use_anchor_generator') and config.use_anchor_generator:
    generator = GridAnchorGenerator(config.img_shape, 4, 2, [1.0, 2.0, 0.5])
    default_boxes, default_boxes_tlbr = generator.generate_multi_levels(config.steps)
else:
    default_boxes_tlbr = GeneratDefaultBoxes().default_boxes_tlbr
    default_boxes = GeneratDefaultBoxes().default_boxes
y1, x1, y2, x2 = np.split(default_boxes_tlbr[:, :4], 4, axis=-1)
vol_anchors = (x2 - x1) * (y2 - y1)
matching_threshold = config.match_threshold


set_seed(1)
# 自定义参数获取
config = get_config()
ms.set_context(mode=ms.GRAPH_MODE, device_target= "CPU")

# 数据加载
mindrecord_dir = os.path.join(config.data_path, config.mindrecord_dir)
mindrecord_file = os.path.join(mindrecord_dir, "ssd.mindrecord"+ "0")

dataset = create_ssd_dataset(mindrecord_file, batch_size=config.batch_size,rank=0, use_multiprocessing=False)

dataset_size = dataset.get_dataset_size()

# checkpoint
ckpt_config = CheckpointConfig(save_checkpoint_steps=dataset_size * config.save_checkpoint_epochs)
ckpt_save_dir = config.output_path + '/ckpt_{}/'.format(0)
ckpoint_cb = ModelCheckpoint(prefix="ssd", directory=ckpt_save_dir, config=ckpt_config)

# 网络定义与初始化
ssd = ssd_vgg16(config=config)
init_net_param(ssd)
# print(ssd)
net = SSDWithLossCell(ssd, config)
# print(net)
lr = Tensor(get_lr(global_step=config.pre_trained_epoch_size * dataset_size,
                   lr_init=config.lr_init, lr_end=config.lr_end_rate * config.lr, lr_max=config.lr,
                   warmup_epochs=config.warmup_epochs,total_epochs=config.epoch_size,steps_per_epoch=dataset_size))
opt = nn.Momentum(filter(lambda x: x.requires_grad, net.get_parameters()), lr,
                  config.momentum, config.weight_decay,float(config.loss_scale))
net = TrainingWrapper(net, opt, float(config.loss_scale))

callback = [TimeMonitor(data_size=dataset_size), LossMonitor(), ckpoint_cb]

model = Model(net)
os.environ["KMP_DUPLICATE_LIB_OK"]  =  "TRUE"
model.train(config.epoch_size, dataset, callbacks=callback)

训练后进行评估

代码：

import os
import mindspore as ms
from mindspore import Tensor
from src.config import get_config

config = get_config()
#print(config)

def ssd_eval(dataset_path, ckpt_path, anno_json):
    """SSD evaluation."""
    batch_size = 1
    ds = create_ssd_dataset(dataset_path, batch_size=batch_size,
                            is_training=False, use_multiprocessing=False)

    net = ssd_vgg16(config=config)

    net = SsdInferWithDecoder(net, Tensor(default_boxes), config)

    print("Load Checkpoint!")
    param_dict = ms.load_checkpoint(ckpt_path)
    net.init_parameters_data()
    ms.load_param_into_net(net, param_dict)

    net.set_train(False)
    total = ds.get_dataset_size() * batch_size
    print("\n========================================\n")
    print("total images num: ", total)
    print("Processing, please wait a moment.")
    eval_param_dict = {"net": net, "dataset": ds, "anno_json": anno_json}
    mAP = apply_eval(eval_param_dict)
    print("\n========================================\n")
    print(f"mAP: {mAP}")

def eval_net():
    if hasattr(config, 'num_ssd_boxes') and config.num_ssd_boxes == -1:
        num = 0
        h, w = config.img_shape
        for i in range(len(config.steps)):
            num += (h // config.steps[i]) * (w // config.steps[i]) * config.num_default[i]
        config.num_ssd_boxes = num

    coco_root = config.coco_root
    json_path = os.path.join(coco_root, config.instances_set.format(config.val_data_type))

    ms.set_context(mode=ms.GRAPH_MODE, device_target=config.device_target)

    mindrecord_dir = os.path.join(config.data_path, config.mindrecord_dir)
    mindrecord_file = os.path.join(mindrecord_dir, "ssd_eval.mindrecord"+ "0")

    #mindrecord_file = create_mindrecord(config.dataset, "ssd_eval.mindrecord", False)

    print("Start Eval!")
    ssd_eval(mindrecord_file, config.checkpoint_file_path, json_path)

eval_net()

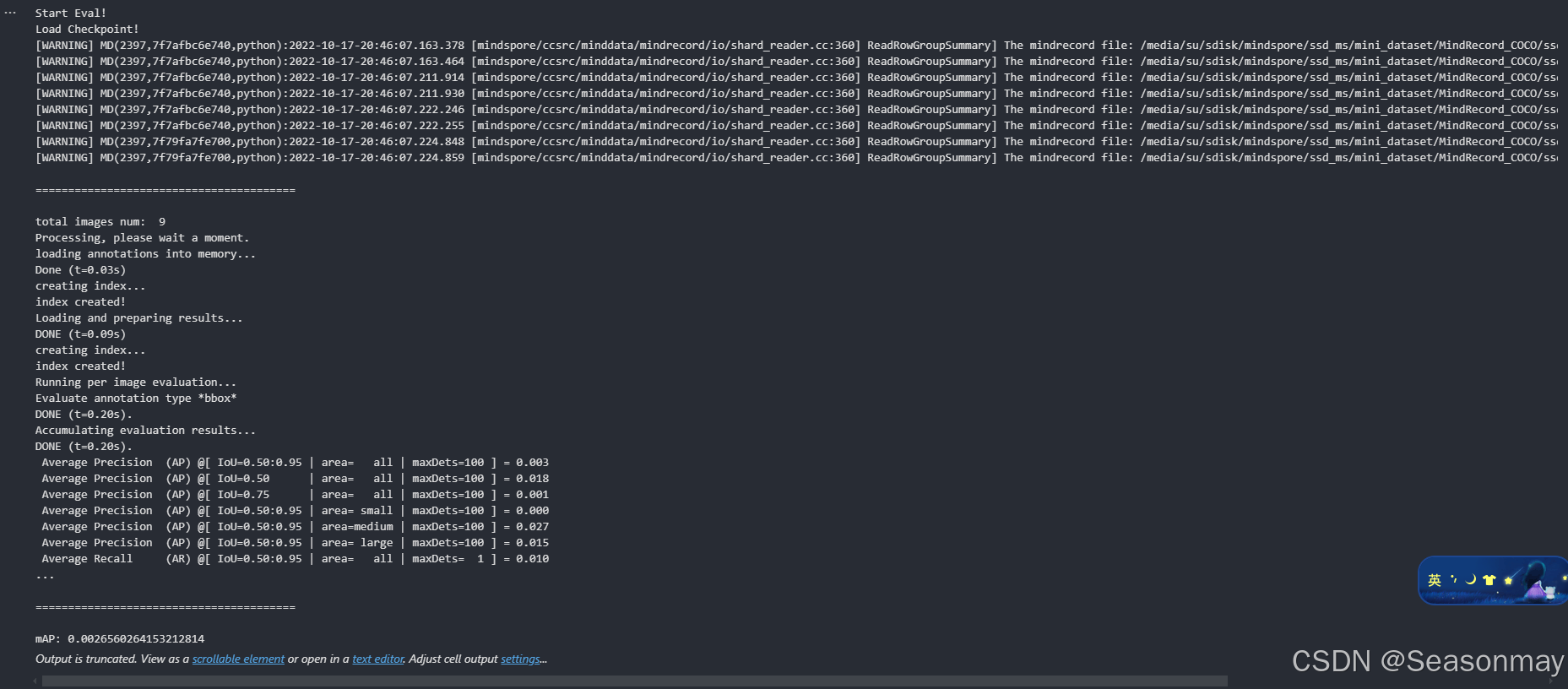

最终评估效果（本地cpu环境下）

参考

kkyi10/SSDNet_ms at master
